Bonded Washer - Metric (RS Gasket) (Ref. 8800)

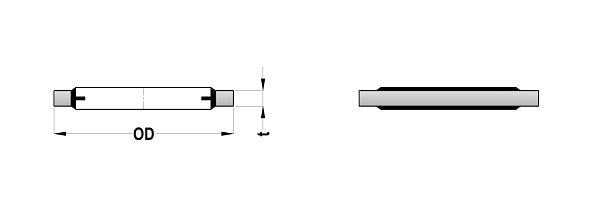

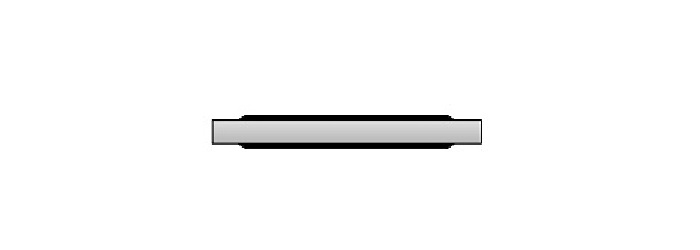

Bonded Washer - Metric (RS Gasket)
|
FLUIDLOK Part Number |
T (Metric) |
Ø D (mm) |
t (mm) |
|---|---|---|---|
| M4-BW-SCL | M4 | 7.0 | 1.0 |
| M5-BW-SCL | M5 | 10.0 | 1.0 |
| M6-BW-SCL | M6 | 10.0 | 1.0 |
| M8-BW-SCL | M8 | 14.0 | 1.0 |
| M10-BW-SCL | M10 | 16.0 | 1.5 |
| M12-BW-SCL | M12 | 19.0 | 1.5 |
| M14-BW-SCL | M14 | 22.0 | 1.5 |
| M16-BW-SCL | M16 | 24.0 | 1.5 |
| M18-BW-SCL | M18 | 26.0 | 1.5 |
| M20-BW-SCL | M20 | 28.0 | 1.5 |
| M22-BW-SCL | M22 | 30.0 | 2.0 |
| M24-BW-SCL | M24 | 32.0 | 2.0 |
| M27-BW-SCL | M27 | 36.0 | 2.0 |
| M30-BW-SCL | M30 | 39.0 | 2.0 |
| M33-BW-SCL | M33 | 42.0 | 2.0 |
| M36-BW-SCL | M36 | 48.0 | 2.5 |
| M39-BW-SCL | M39 | 51.0 | 2.5 |
| M42-BW-SCL | M42 | 53.0 | 2.5 |
| M45-BW-SCL | M45 | 57.0 | 3.0 |
| M48-BW-SCL | M48 | 59.0 | 3.0 |
• Dimensions are for reference only. Subject to change.
• Gasket standard supply with a viton or Buna inner ring bonded to a carbon steel outer ring.
• Gasket optional supply with a viton or Buna inner ring bonded to a stainless steel outer ring.
