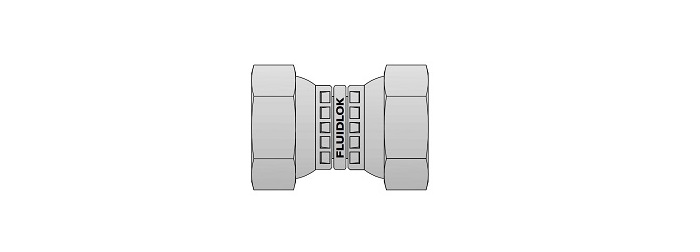

Swivel Reducing Adaptor
Equal Swivel Adaptor
|
FLUIDLOK Part Number |
Swivel |
T (UN/UNF-2B) |
Swivel |
Tx (UN/UNF-2B) |
L (mm) |
Ø D (mm) |
Ø D1 (mm) |
|---|---|---|---|---|---|---|---|
| 2-SEA-4 | 1/8" | 5/16"-24 | 1/4" | 7/16"-20 | 27.6 | 5.1 | 3.5 |
| 4-SEA-6 | 1/4" | 7/16"-20 | 3/8" | 9/16"-20 | 33.5 | 8.1 | 5.1 |
| 4-SEA-8 | 1/4" | 7/16"-20 | 1/2" | 3/4"-16 | 37.5 | 9.7 | 5.1 |
| 6-SEA-8 | 3/8" | 9/16"-18 | 1/2" | 3/4"-16 | 41.0 | 9.7 | 8.1 |
| 8-SEA-10 | 1/2" | 3/4"-16 | 5/8" | 7/8"-14 | 47.0 | 12.0 | 9.7 |
| 8-SEA-12 | 1/2" | 3/4"-16 | 3/4" | 1.1/16"-12 | 53.0 | 15.5 | 9.7 |
| 10-SEA-12 | 5/8" | 7/8"-14 | 3/4" | 1.1/16"-12 | 55.5 | 15.5 | 12.0 |
| 12-SEA-16 | 3/4" | 1.1/16"-12 | 1" | 1.5/16"-12 | 67.5 | 20.4 | 15.5 |
• Dimensions are for reference only. Subject to change.
