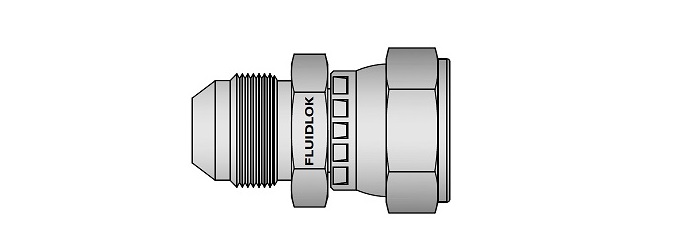

JIC Swivel Connector (Ref. 6504)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

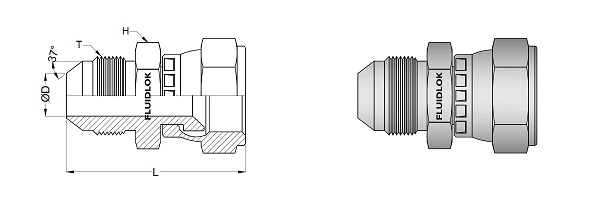

JIC Swivel Connector
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UN/UNF-2A) |
Swivel | UN/UNF-2B |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| JSC-4-4 | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 35.9 | 4.4 | 1/2 |
| JSC-5-5 | 5/16" | 1/2"-20 | 5/16" | 1/2"-20 | 37.4 | 6.0 | 9/16 |
| JSC-6-6 | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 40.7 | 7.5 | 5/8 |
| JSC-8-8 | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 43.8 | 10.8 | 13/16 |
| JSC-10-10 | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 54.9 | 12.3 | 13/16 |
| JSC-12-12 | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 59.1 | 15.5 | 1.1/8 |
| JSC-16-16 | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 63.0 | 21.4 | 1.3/8 |
| JSC-20-20 | 1.1/4" | 1.5/8"-12 | 1.1/4" | 1.5/8"-12 | 68.4 | 27.5 | 1.11/16 |
| JSC-24-24 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 78.4 | 33.0 | 2 |
| JSC-32-32 | 2" | 2.1/2"-12 | 2" | 1.1/2"-12 | 88.1 | 45.0 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
