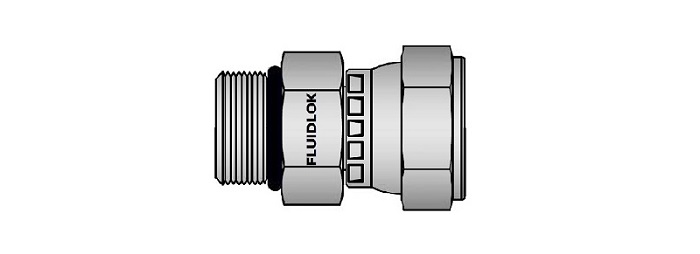

JIC Swivel Male Connector - UF (Ref. 6402)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

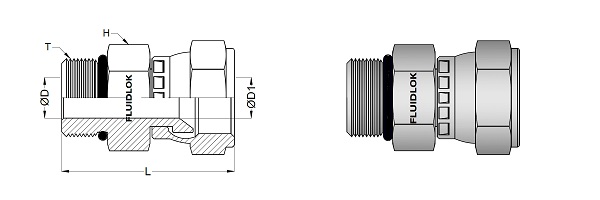

JIC Swivel Male Connector - UF
|
FLUIDLOK Part Number |
T |
T (UNF/UN-2A) |
Swivel | UNF/UN-2B |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| JSMC-4UF-4 | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 32.6 | 4.4 | 4.4 | 9/16 |
| JSMC-4UF-6 | 1/4" | 7/16"-20 | 3/8" | 9/16"-18 | 36.4 | 4.4 | 7.5 | 9/16 |
| JSMC-6UF-4 | 3/8" | 9/16"-18 | 1/4" | 7/16"-20 | 34.9 | 7.5 | 4.4 | 11/16 |
| JSMC-6UF-6 | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 37.7 | 7.5 | 7.5 | 11/16 |
| JSMC-6UF-8 | 3/8" | 9/16"-18 | 1/2" | 3/4"-16 | 40.7 | 7.5 | 9.9 | 3/4 |
| JSMC-8UF-6 | 1/2" | 3/4"-16 | 3/8" | 9/16"-18 | 39.5 | 9.9 | 7.5 | 7/8 |
| JSMC-8UF-8 | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 40.5 | 9.9 | 9.9 | 7/8 |
| JSMC-8UF-16 | 1/2" | 3/4"-16 | 1" | 1.5/16"-12 | 57.2 | 9.9 | 21.4 | 1.3/8 |
| JSMC-10UF-8 | 5/8" | 7/8"-14 | 1/2" | 3/4"-16 | 43.5 | 12.3 | 9.9 | 1 |
| JSMC-10UF-10 | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 49.5 | 12.3 | 12.3 | 1 |
| JSMC-10UF-8 | 3/4" | 1.1/16"-12 | 1/2" | 3/4"-16 | 43.3 | 15.4 | 9.9 | 1.1/4 |
| JSMC-10UF-12 | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 55.1 | 15.5 | 15.5 | 1.1/4 |
| JSMC-16UF-12 | 1" | 1.5/16"-12 | 3/4" | 1.1/16"-12 | 55.6 | 21.4 | 15.5 | 1.1/2 |
| JSMC-16UF-16 | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 57.9 | 21.4 | 21.4 | 1.1/2 |
| JSMC-16UF-20 | 1" | 1.5/16"-12 | 1.1/4" | 1.5/8"-12 | 63.5 | 21.4 | 27.5 | 2 |
| JSMC-16UF-24 | 1" | 1.5/16"-12 | 1.1/2" | 1.7/8"-12 | 73.1 | 21.4 | 33.0 | 2 |
| JSMC-20UF-20 | 1.1/4" | 1.3/16"-12 | 1.1/4" | 1.5/8"-12 | 62.3 | 27.5 | 27.5 | 1.7/8 |
| JSMC-24UF-20 | 1.1/2" | 1.7/8"-12 | 1.1/4" | 1.5/8"-12 | 62.3 | 33.3 | 27.5 | 2.1/8 |
| JSMC-24UF-24 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 69.0 | 33.3 | 33.3 | 2.1/8 |
| JSMC-32UF-32 | 2" | 2.1/2"-12 | 2" | 2.1/2"-12 | 69.8 | 45.0 | 45.0 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
