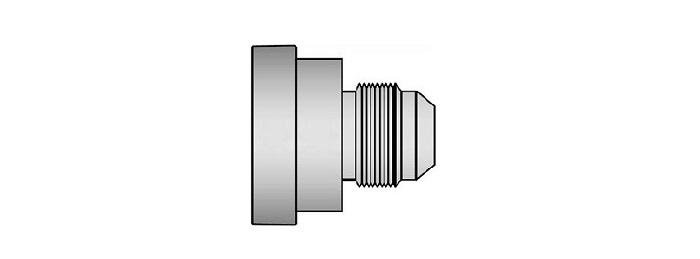

JIC Tube Reducer Form 'B' (Ref. 2407)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

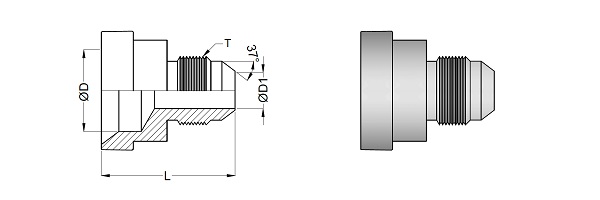

JIC Tube Reducer Form 'B'
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx (Tube OD) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
|---|---|---|---|---|---|---|
| JTR-6-4 | 3/8" | 9/16"-18 | 1/4" | 24.6 | 8.1 | 4.4 |
| JTR-8-4 | 1/2" | 3/4"-16 | 1/4" | 25.4 | 10.8 | 4.4 |
| JTR-8-6 | 1/2" | 3/4"-16 | 3/8" | 25.4 | 10.8 | 7.5 |
| JTR-10-4 | 5/8" | 7/8"-14 | 1/4" | 26.2 | 13.7 | 4.4 |
| JTR-10-6 | 5/8" | 7/8"-14 | 3/8" | 26.2 | 13.7 | 7.5 |
| JTR-12-4 | 3/4" | 1.1/16"-12 | 1/4" | 27.7 | 16.9 | 4.4 |
| JTR-12-6 | 3/4" | 1.1/16"-12 | 3/8" | 27.7 | 16.9 | 7.5 |
| JTR-12-8 | 3/4" | 1.1/16"-12 | 1/2" | 30.2 | 16.9 | 9.9 |
| JTR-16-12 | 1" | 1.5/16"-12 | 3/4" | 37.3 | 23.2 | 15.5 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JTR-6-4-_A).
