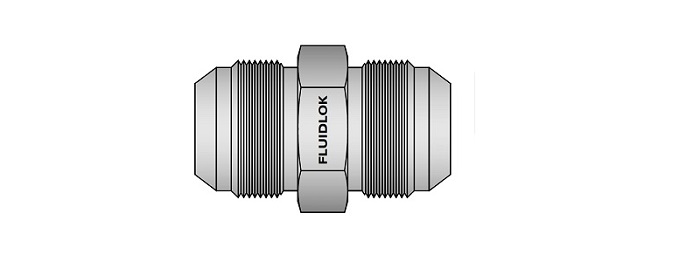

JIC Reducing Union (Ref. 2403)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

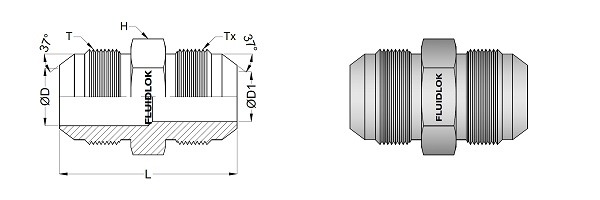

JIC Reducing Union
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UN/UNF-2A) |
Tx (Tube OD) |
Tx (UN/UNF-2A) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| JRU-4-2 | 1/4" | 7/16"-20 | 1/8" | 5/16"-24 | 32.8 | 4.4 | 1.6 | 1/2 |
| JRU-4-6 | 1/4" | 7/16"-20 | 3/8" | 9/16"-18 | 33.0 | 4.4 | 3.2 | 1/2 |
| JRU-5-4 | 5/16" | 1/2"-20 | 1/4" | 7/16"-20 | 34.8 | 6.0 | 4.4 | 9/16 |
| JRU-6-4 | 3/8" | 9/16"-18 | 1/4" | 7/16"-20 | 35.6 | 7.5 | 4.4 | 5/8 |
| JRU-6-5 | 3/8" | 9/16"-18 | 5/8" | 7/8"-14 | 36.3 | 7.5 | 6.0 | 5/8 |
| JRU-8-4 | 1/2" | 3/4"-16 | 1/4" | 7/16"-20 | 38.3 | 9.9 | 4.4 | 13/16 |
| JRU-8-6 | 1/2" | 3/4"-16 | 3/8" | 9/16"-18 | 38.6 | 9.9 | 7.5 | 13/16 |
| JRU-10-4 | 5/8" | 7/8"-14 | 1/4" | 7/16"-20 | 42.4 | 12.3 | 4.4 | 15/16 |
| JRU-10-6 | 5/8" | 7/8"-14 | 3/8" | 9/16"-18 | 42.7 | 12.3 | 7.5 | 15/16 |
| JRU-10-8 | 5/8" | 7/8"-14 | 1/2" | 3/4"-16 | 45.2 | 12.3 | 9.9 | 15/16 |
| JRU-12-4 | 3/4" | 1.1/16"-12 | 1/4" | 7/16"-20 | 47.0 | 15.5 | 4.4 | 1.1/8 |
| JRU-12-6 | 3/4" | 1.1/16"-12 | 3/8" | 9/16"-18 | 47.0 | 15.5 | 7.5 | 1.1/8 |
| JRU-12-8 | 3/4" | 1.1/16"-12 | 1/2" | 3/4"-16 | 49.5 | 15.5 | 9.9 | 1.1/8 |
| JRU-12-10 | 3/4" | 1.1/16"-12 | 5/8" | 7/8"-14 | 52.1 | 15.5 | 12.3 | 1.1/8 |
| JRU-14-12 | 7/8" | 1.3/16"-12 | 3/4" | 1.1/16"-12 | 55.4 | 18.3 | 15.5 | 1.1/4 |
| JRU-16-10 | 1" | 1.5/16"-12 | 5/8" | 7/8"-14 | 53.3 | 21.4 | 12.3 | 1.3/8 |
| JRU-16-12 | 1" | 1.5/16"-12 | 3/4" | 1.1/16"-12 | 55.4 | 21.4 | 15.5 | 1.3/8 |
| JRU-20-12 | 1.1/4" | 1.5/8"-12 | 3/4" | 1.1/16"-12 | 59.4 | 27.4 | 15.5 | 1.11/16 |
| JRU-20-16 | 1.1/4" | 1.5/8"-12 | 1" | 1.5/16"-12 | 60.4 | 27.4 | 21.4 | 1.11/16 |
| JRU-24-16 | 1.1/2" | 1.7/8"-12 | 1" | 1.5/16"-12 | 63.0 | 33.3 | 21.4 | 2 |
| JRU-24-20 | 1.1/2" | 1.7/8"-12 | 1.1/4" | 1.5/8"-12 | 66.5 | 33.3 | 27.4 | 2 |
| JRU-32-20 | 2" | 2.1/2"-12 | 1.1/4" | 1.5/8"-12 | 80.0 | 45.2 | 33.3 | 2.5/8 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JRU-2-_A).
