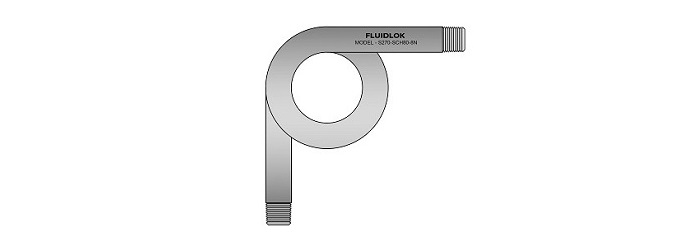

Pipe Gauge 270° Syphon

Pipe Gauge 270° Syphon
Product Information

Application:

  • Pipe Gauge Syphon are used to protect the pressure gauge from the effect of hot pressure media such as steam and also to resuce the effect of rapid pressure changes. Syphon allows condensate to form & to be collected inside the syphon, preventing the hot media vapours, not just steam from coming in direct contact with the pressure instruments.



Pipe Gauge 270° Syphon
FLUIDLOK

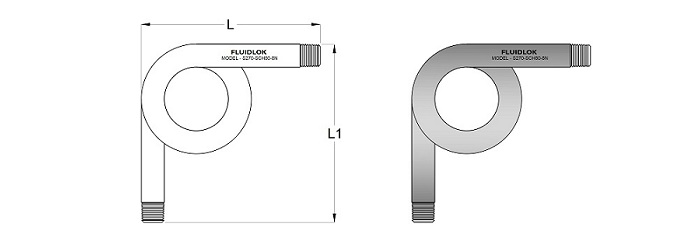

Part Number		 Schedule Designation
 ANSI/ASME		 End Connection L
(mm)		 L1
(mm)
Inlet Outlet
S270-SCH40-4N SCH 40 1/4" NPT 1/4" NPT 101.6 101.6
S270-SCH40-8N SCH 40 1/2" NPT 1/2" NPT 165.1 165.1
S270-SCH80-4N SCH 80 1/4" NPT 1/4" NPT 101.6 101.6
S270-SCH80-8N SCH 80 1/2" NPT 1/2" NPT 165.1 165.1
S270-SCH160-8N SCH 160 1/2" NPT 1/2" NPT 165.1 165.1
• Dimensions are for reference only. Subject to change.
