Adaptor - BSPT X NPT
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

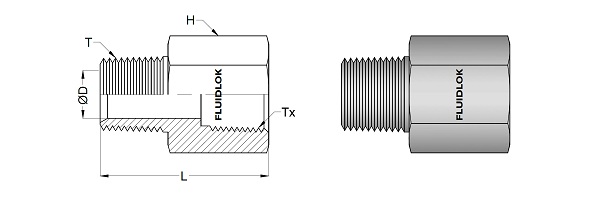

Adaptor - BSPT X NPT
|
FLUIDLOK Part Number |
T (BSPT-M) |
Tx (NPT-F) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 2RT-PA-2N | 1/8" | 1/8" | 25.1 | 4.1 | 9/16 |
| 4RT-PA-4N | 1/4" | 1/4" | 33.5 | 5.8 | 3/4 |
| 6RT-PA-6N | 3/8" | 3/8" | 35.8 | 7.9 | 7/8 |
| 8RT-PA-8N | 1/2" | 1/2" | 44.2 | 11.9 | 1.1/16 |
| 12RT-PA-12N | 3/4" | 3/4" | 48.0 | 15.7 | 1.5/16 |
| 16RT-PA-16N | 1" | 1" | 53.3 | 19.8 | 1.5/8 |
• Dimensions are for reference only. Subject to change.
