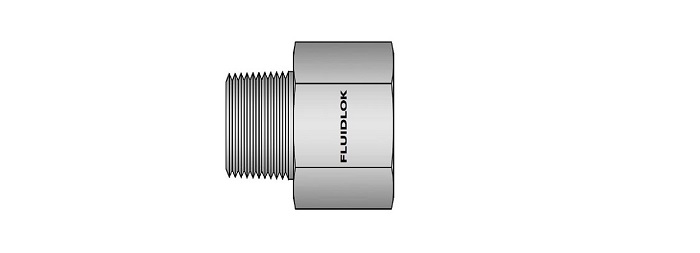

Adaptor - NPT X BSPT
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.
Adaptor - NPT X BSPT
|

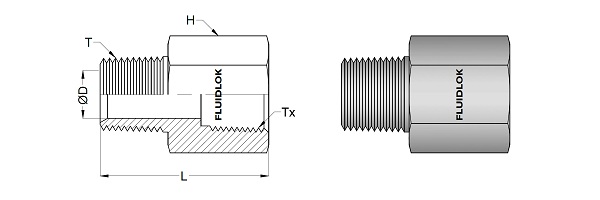

FLUIDLOK Part Number |
T (NPT-M) |
Tx (BSPT-F) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 2N-PA-2RT | 1/8" | 1/8" | 27.9 | 4.8 | 9/16 |
| 4N-PA-4RT | 1/4" | 1/4" | 35.6 | 7.1 | 3/4 |
| 6N-PA-6RT | 3/8" | 3/8" | 38.4 | 9.7 | 7/8 |
| 8N-PA-8RT | 1/2" | 1/2" | 49.3 | 11.9 | 1.1/16 |
| 12N-PA-12RT | 3/4" | 3/4" | 51.3 | 15.7 | 1.5/16 |
| 16N-PA-16RT | 1" | 1" | 57.9 | 22.4 | 1.5/8 |
• Dimensions are for reference only. Subject to change.
