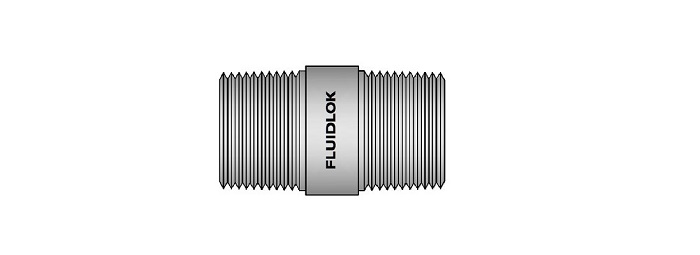

Close Nipple - NPT (Ref. 5404CL)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

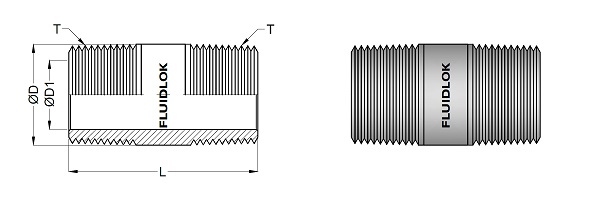

Close Nipple - NPT X NPT
|
FLUIDLOK Part Number |
T (NPT) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
|---|---|---|---|---|
| PCN-2 | 1/8" | 19.1 | 10.3 | 4.8 |
| PCN-4 | 1/4" | 28.4 | 13.7 | 7.1 |
| PCN-6 | 3/8" | 28.4 | 17.1 | 9.7 |
| PCN-8 | 1/2" | 38.1 | 21.3 | 11.9 |
| PCN-12 | 3/4" | 38.1 | 26.7 | 15.7 |
| PCN-16 | 1" | 47.8 | 33.4 | 22.4 |
• Dimensions are for reference only. Subject to change.
