RG Gasket
- Feature: RG gasket provides a seal on pressure gauges equipped with male BSP/ISO parallel thread.
RG Gasket
|

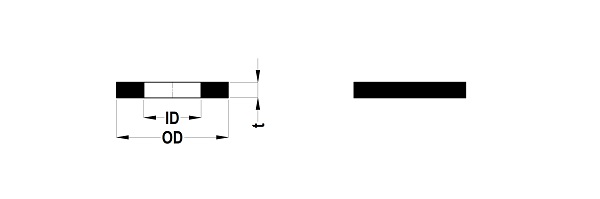

FLUIDLOK Part Number |
BSPP |
ID (mm) |
OD (mm) |
t (mm) |
|---|---|---|---|---|
| 4G-RG-GSKT | 1/4" | 7.6 | 10.7 | 1.8 |
| 6G-RG-GSKT | 3/8" | 8.6 | 14.2 | 2.0 |
| 8G-RG-GSKT | 1/2" | 9.0 | 18.0 | 3.0 |
• Standard material is Copper.
• Dimensions are for reference only. Subject to change.
