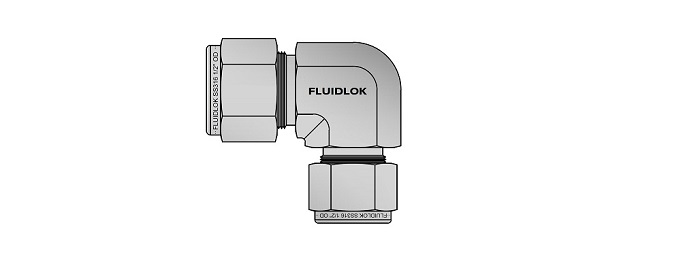

Reducing Union Elbow
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

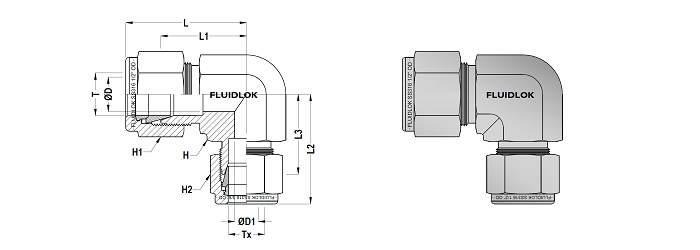

FLUIDLOK Part Number |
T (Tube OD) |
Tx (Tube OD) |
L (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
Ø D (mm) |
Ø D1 (mm) |
H (inch) |
H1 (inch) |
H2 (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2-RE- | 1/8" | ||||||||||
| 3-RE- | 3/16" | ||||||||||
| 4-RE- | 1/4" | ||||||||||
| 5-RE- | 5/16" | ||||||||||
| 6-RE- | 3/8" | ||||||||||
| 8-RE- | 1/2" | ||||||||||
| 10-RE- | 5/8" | ||||||||||
| 12-RE- | 3/4" | ||||||||||
| 14-RE- | 7/8" | ||||||||||
| 16-RE- | 1" |
Metric Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
Tx (Tube OD) |
L (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
Ø D (mm) |
Ø D1 (mm) |
H (mm) |
H1 (mm) |
H2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3M-RE- | 3 mm | ||||||||||
| 4M-RE- | 4 mm | ||||||||||
| 6M-RE- | 6 mm | ||||||||||
| 8M-RE- | 8 mm | ||||||||||
| 10M-RE- | 10 mm | ||||||||||
| 12M-RE- | 12 mm | ||||||||||
| 15M-RE- | 15 mm | ||||||||||
| 16M-RE- | 16 mm | ||||||||||
| 18M-RE- | 18 mm | ||||||||||
| 20M-RE- | 20 mm | ||||||||||
| 22M-RE- | 22 mm | ||||||||||
| 25M-RE- | 25 mm |
• Dimensions are for reference only. Subject to change.
