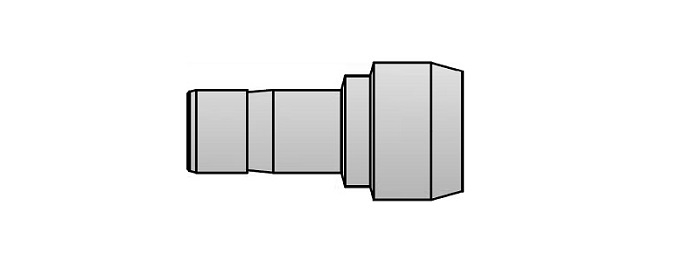

Reducing Port Connector
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

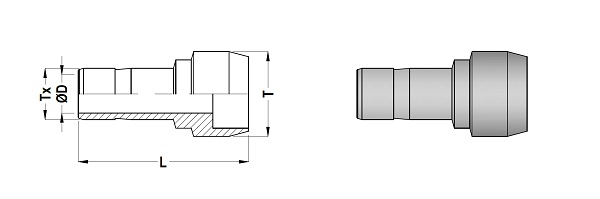

Fractional Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
Tx (Tube OD) |
L (mm) |
Ø D (mm) |
|---|---|---|---|---|
| 4-RPC-2S | 1/4" | 1/8" | 22.6 | 2.3 |
| 6-RPC-2S | 3/8" | 1/8" | 23.1 | 2.3 |
| 6-RPC-4S | 3/8" | 1/4" | 24.9 | 4.8 |
| 8-RPC-4S | 1/2" | 1/4" | 29.2 | 4.8 |
| 8-RPC-6S | 1/2" | 3/8" | 30.5 | 7.1 |
| 12-RPC-8S | 3/4" | 1/2" | 37.8 | 9.9 |
| 16-RPC-8S | 1" | 1/2" | 42.7 | 9.9 |
| 16-SPC-12S | 1" | 3/4" | 43.4 | 15.0 |
Metric Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
Tx (Tube OD) |
L (mm) |
Ø D (mm) |
|---|---|---|---|---|
| 8M-RPC-6MS | 8 mm | 6 mm | 25.3 | 4.6 |
| 10M-RPC-6MS | 10 mm | 6 mm | 25.3 | 4.6 |
| 10M-RPC-8MS | 10 mm | 8 mm | 25.9 | 6.4 |
| 12M-RPC-6MS | 12 mm | 6 mm | 29.4 | 6.4 |
| 12M-RPC-8MS | 12 mm | 8 mm | 30.0 | 6.4 |
| 12M-RPC-10MS | 12 mm | 10 mm | 30.5 | 7.7 |
| 16M-RPC-12MS | 16 mm | 12 mm | 37.5 | 9.1 |
• Dimensions are for reference only. Subject to change.
