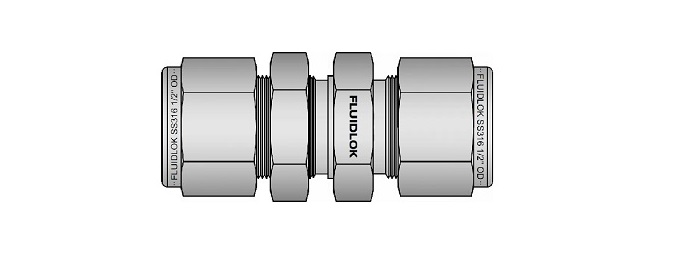

Reducing Bulkhead Union
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

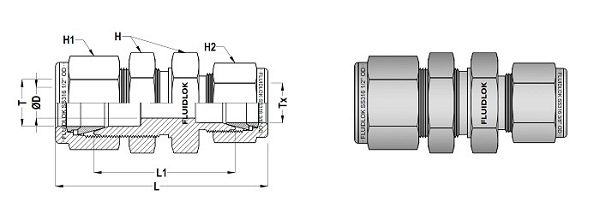

FLUIDLOK Part Number |
T (Tube OD) |
Tx (Tube OD) |
L (mm) |
L1 (mm) |
Ø D (mm) |
H (Inch) |
H1 (Inch) |
H2 (Inch) |
|---|---|---|---|---|---|---|---|---|
| 4-BRU-2 | 1/4" | 1/8" | 55.1 | 41.1 | 2.3 | 5/8 | 9/16 | 7/16 |
| 6-BRU-4 | 3/8" | 1/4" | 60.7 | 46.0 | 4.8 | 3/4 | 11/16 | 9/16 |
| 8-BRU-4 | 1/2" | 1/4" | 66.8 | 49.3 | 4.8 | 15/16 | 7/8 | 9/16 |
• Dimensions are for reference only. Subject to change.
